Yongte WPC Machine Turnkey Project
High Quality Wood Plastic Composite Production Solutions at Competitive Costs
About Our WPC Machine Turnkey Project
Complete solutions for wood plastic composite production with advanced technology and competitive pricing
Yongte WPC Machine Turnkey Project combines the dual advantages of wood and plastic to create high-quality products with both wood texture and plastic performance. Our comprehensive solution covers the entire production process from raw material preparation to finished product manufacturing.
Machine Specifications
Advanced technical specifications for optimal WPC production performance
Our WPC production line features precise control over key parameters such as temperature and pressure to ensure that the produced wood plastic pellets are uniform in size, dense in texture, and stable in performance. The complete electrical system is designed for high quality, safety, easy operation, and maintenance.
| Parameter | Specification |
|---|---|
| Raw Material Compatibility | PP/PE recycled plastics, wood powder (60-70% content) |
| Production Capacity | 100-500 kg/h (depending on model and configuration) |
| Extruder Type | Parallel twin-screw for granulation, Conical twin-screw for profiles |
| Power Consumption | 75-200 kW (depending on production capacity) |
| Control System | PLC with touch screen interface |
| Temperature Control | ±1°C precision |
| Cooling System | Water cooling with temperature control |
| Product Dimensions | Customizable profiles (width, thickness, shape) |
| Surface Treatment | Online 3D embossing, painting, or laminating options |
| Certifications | CE certified |
WPC Production Process
Our turnkey project covers the entire WPC production process from raw material preparation to finished products
1, Wood Powder Production
Yongte wood powder production equipment can transform agricultural and forestry waste such as logs, sawdust, rice husks, and wheat straw into high-quality wood powder. This sustainable approach utilizes renewable resources and reduces waste.
2, Plastic Recycling
Yongte plastic recycling equipment processes PP/PE plastic waste (such as bottles, film, bags, and cans) into clean plastic flakes through crushing, cleaning, drying, and other processes. This not only reduces environmental pollution but also lowers raw material costs.
3, Raw Material Mixing
According to the formula provided by Yongte, wood powder, plastic, and auxiliary agents are mixed in a high-speed mixer. Our optimized formulas ensure the perfect balance between cost-effectiveness and product quality.
4, WPC Pellet Manufacturing
The mixture is transported to Yongte's WPC granulation machine, which is equipped with a high-efficiency parallel twin-screw extruder specially designed for wood plastic composition, a high-speed hot pelletizing system, and a fast three-stage air cooling system. The wood powder ratio can reach 60-70%, and the produced WPC pellets are evenly mixed and well plasticized to ensure the quality of the final product.
5, WPC Profile Extrusion
The WPC pellets are processed in Yongte's WPC profile extrusion line. The equipment features a specially designed conical twin-screw extruder, die head and mold specifically built for wood plastic materials, online 3D embossing device, high-speed cooling system, powerful traction device, and automatic cutting system. The production process is efficient and stable, with precise control at each stage, greatly improving production capacity. The WPC products produced have stable dimensions, neat cutting surfaces without burrs, realistic and vivid wood grains, and excellent performance.
6, Co-Extrusion Process
High precision co-extrusion process to coating anti-UV aging layer on surface of WPC products to increase its using life. more than 10 years using life can be achieved
7, Online 3D Embossing Process
Online 3D embossing process can make deep wooden grain texture on the WPC products surface, we have many different beautiful embossing designs can be achieved as per customer's needs
8, Sanding and brushing process
Sanding and brushing process is used for making wood-like rough feeling surface on WPC products, we have different types of sanding brushing machine to make different roughness

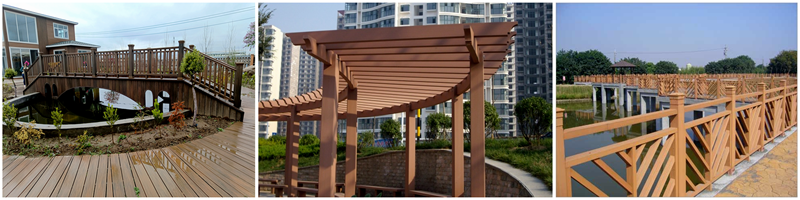

WPC Product Applications
Wood plastic products are widely used in various industries due to their exceptional properties
Construction Industry
Decking and flooring solutions
Wall cladding and siding
Roofing materials
Fencing and railing systems
Landscaping & Outdoor
Garden benches and seating
Pergolas and shade structures
Pathway decking
Planters and garden edging
Playground equipment
Industrial Applications
Pallets and shipping containers
Storage solutions and shelves
Workbenches and tables
Machine guards and components
Packaging materials
Advantages of Yongte WPC Machine
High Efficiency
Advanced extrusion technology ensures high productivity and consistent output quality, maximizing your production capacity.
High Automation
Fully automated production line reduces manual labor requirements and ensures consistent product quality.
Environmental Friendly
Processes recycled PP/PE plastic with 60-70% wood powder content, promoting sustainable production practices.
Easy Operation
User-friendly control systems and simplified maintenance procedures ensure smooth operation and minimal downtime.
Energy Saving
Optimized power consumption design reduces energy costs while maintaining high production efficiency.
Safety & Reliability
Complete electrical system designed for high quality, safety, easy operation, and maintenance.
Ready to Start Your WPC Production Journey?
We have this complete WPC machine in our factory stock and sincerely invite customers to visit our factory to see the machine running in person.
Yongte Plastic Machinery
Professional manufacturer of plastic extrusion equipment with over years of experience. We provide high-quality WPC production solutions to customers worldwide.
