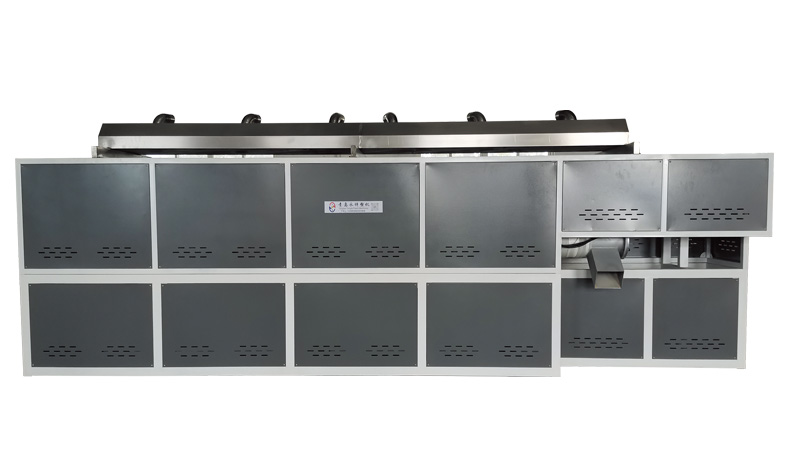

This machine is designed with double ladder drying barrel, it has theadvantages oflow power consumption, easy operation, low noise, higheffective, easy maintenance, and safely working.Main Technical Parameter:ModelPreheating powerDriving powerCapacityWD-200100kw2kw*2200-400kg/h

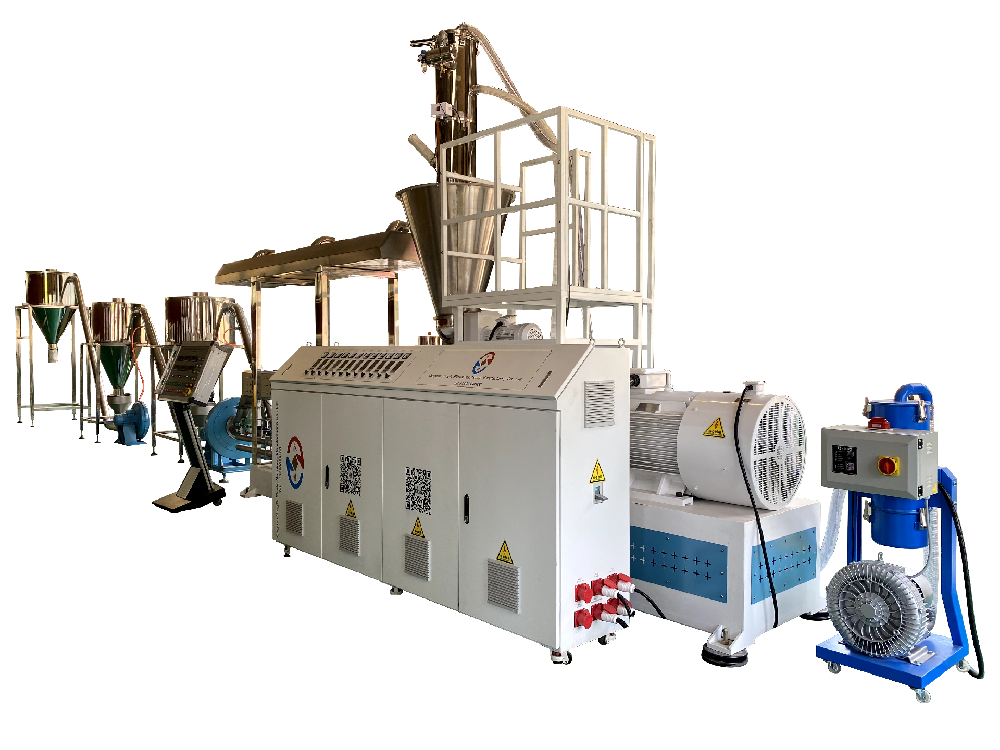

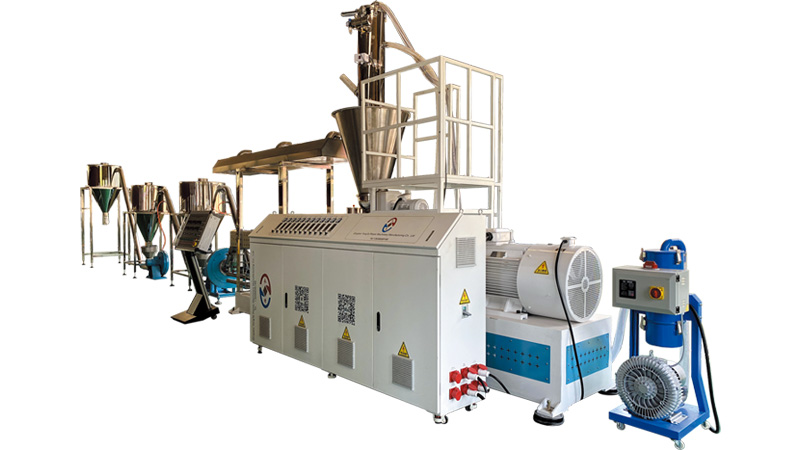

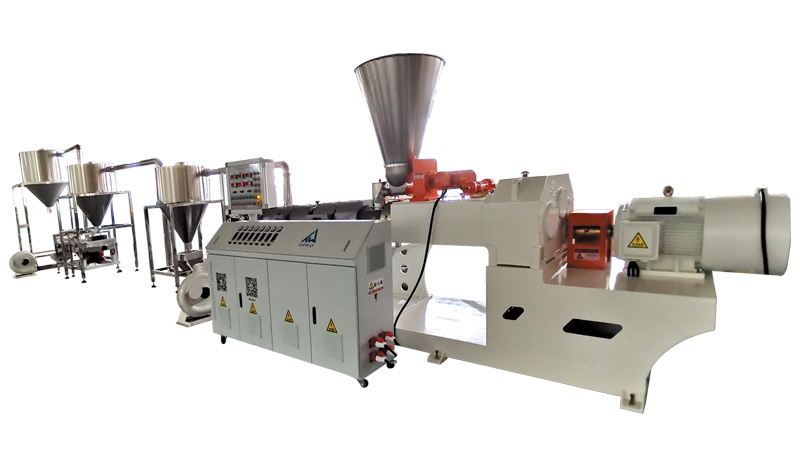

WPC granulation machine is used for making WPC granules from wood andplastic mixture. lt contents the feeding device, parallel double screw extruder,primary crushing device, 4 stages cooling device, fine crusher and material tank.Yongte WPC granulation machine has the advantages of high efficiency,c

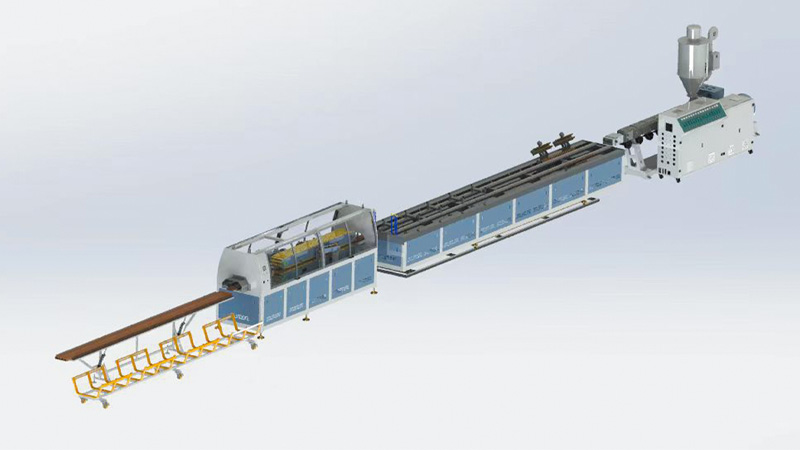

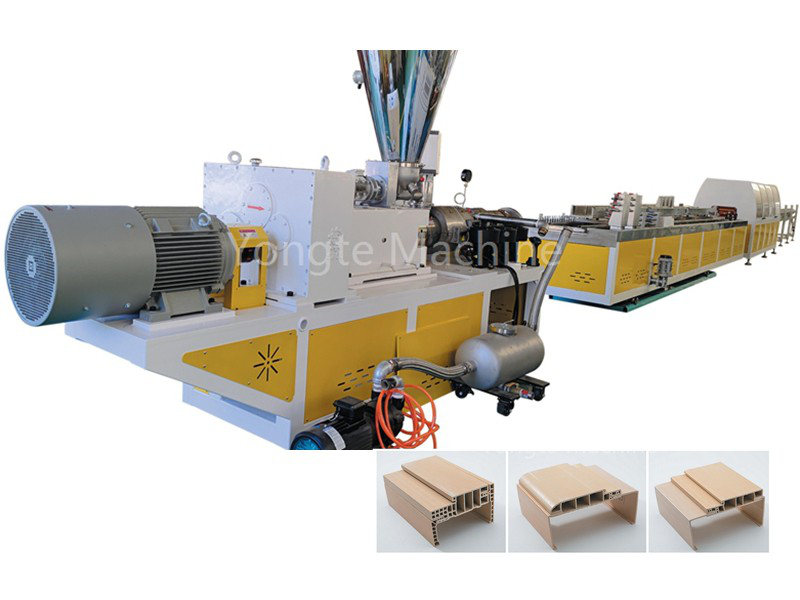

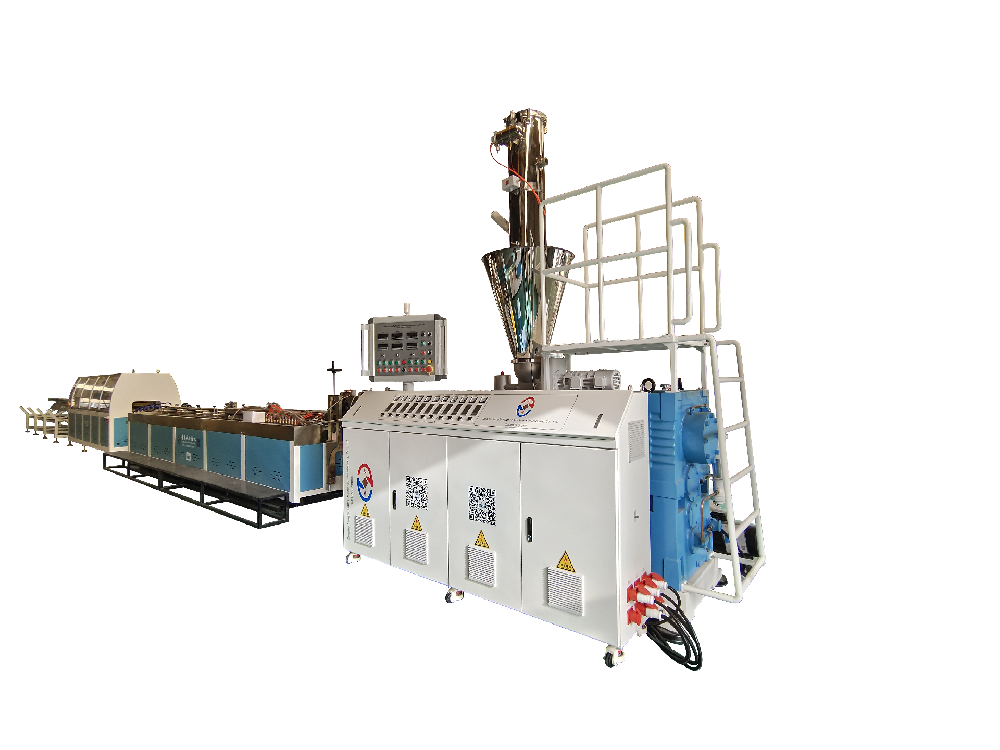

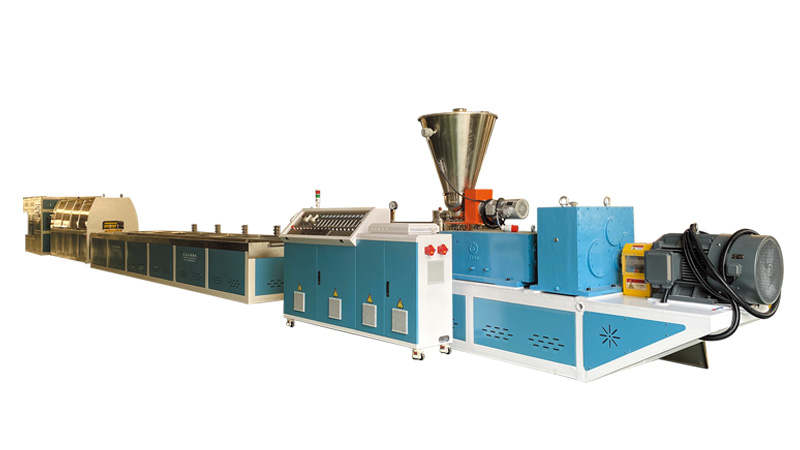

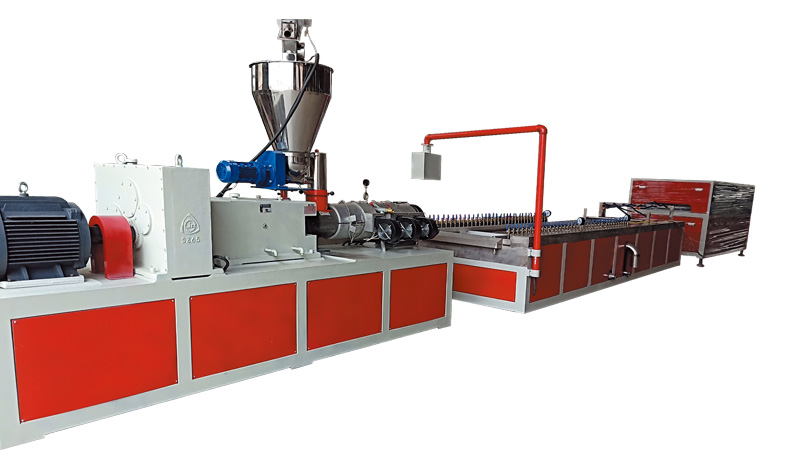

120-150 kg/hWPC door profile extrusion line consists of material feeder, conical twin-screwextruder, vacuum calibration table, haul off machine, cutting machine and relatedauxiliary equipment, The extruder components adopt a unique screw design toavoid high shear and over-plasticization of the raw m

WPVC Wall Panel Extrusion Line is used for makingindoor decorative wall panelsand ceiling panels.The WPVC wall panel has the advantages of Waterproof and moisture-proof,Insect-proof and termite-proof, various colors and customizable, personalizedshape, Environmentally friendly and recyclable, Good f

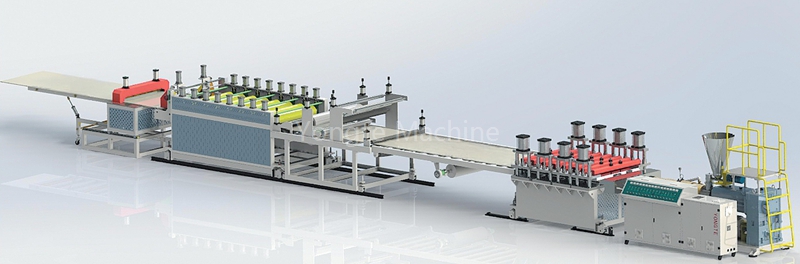

The PVC WPC foam board extrusion line can make both PVC foam board andWPC foam board with standard width 1220mm and adjustable thickness 3-40mmin solid shape.The PVC WPC foam boards are widely used in furniture, architectural decoration,advertising display, vehicle and ship interior decoration and o

The PVC WPC door panel extrusion line is used for making hollow shape doorpanel with different width and thickness. lt contents material feeder, conicaldouble screw extruder, mold and calibrator, vacuum calibration table, pull offmachine, cutting machine and electric control system, lt has the advan

Yongte WPE profile extrusion line has the advantages of high efficiency, highquality, energy saving,easy operation, low maintenance cost,and continuousinnovation, We supply complete equipment and turn-key service for making WPEprofiles from raw material to the finished products.WPE profile extrusion

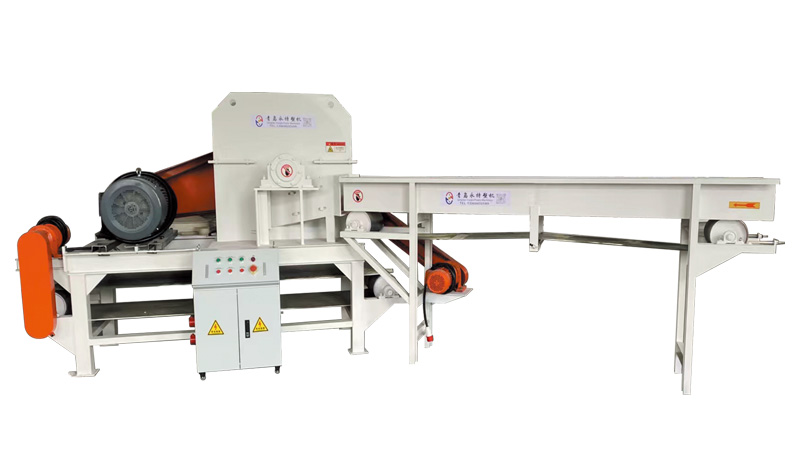

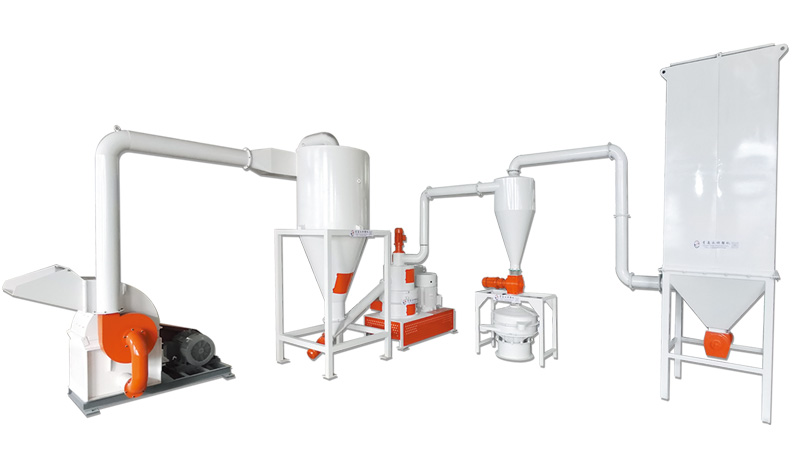

This machine is used for processing wood chips, ricehusk, rice straw, wheat straw, cotton straw into woodpowder size 20-120 mesh as per customer's requirements.Our wood grinder adopts grinding gear disc, it hasadvantages of high output, low power consumption, easyto do maintainence, long using l

.

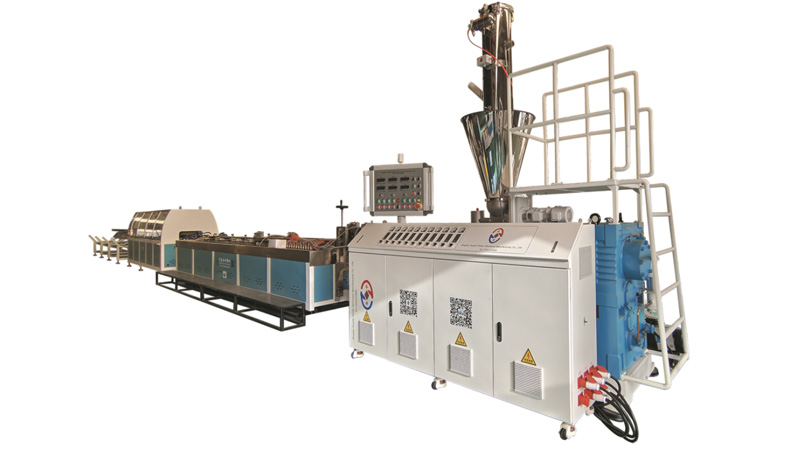

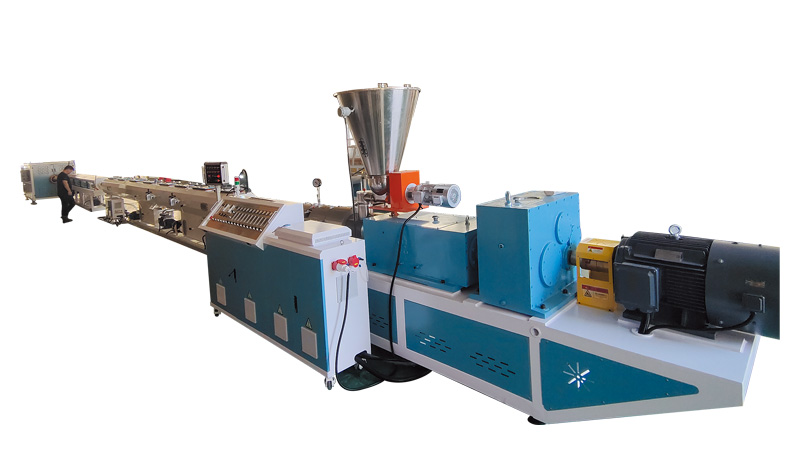

PVC pipe production lines usually consist of material feeder, conical doublescrew extruder, mould and sizer, vacuum and water cooling tanks, pull off device,cutting device and electrical control systemsPVC pipes have a wide range of application, such as: water drainage, watersupply pipes, wire and c

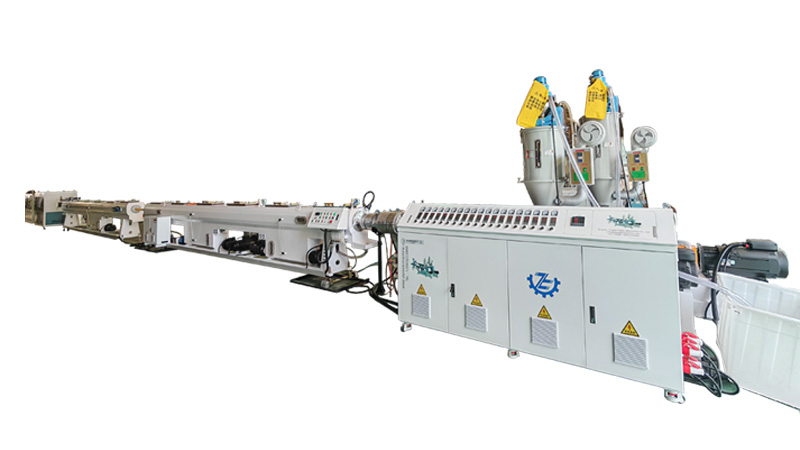

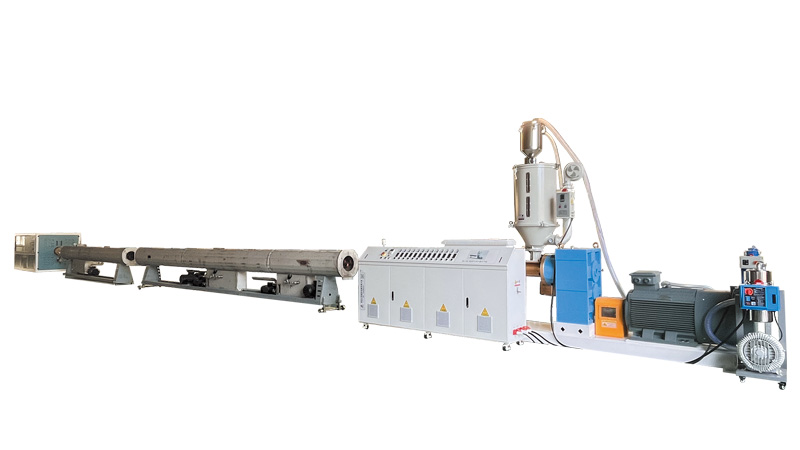

PE/PPR pipe production line usually consist of mian extruder, marking extruder.mould, vacuum and water cooling tanks, haul off device, cutting machines andelectrical system, PE and PPR pipe has the characteristics of corrosion resistance,high temperature resistance, good health performance, etc., an

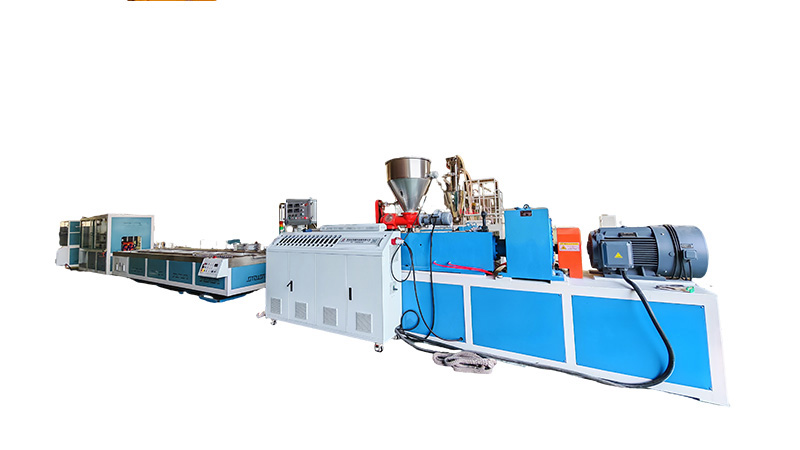

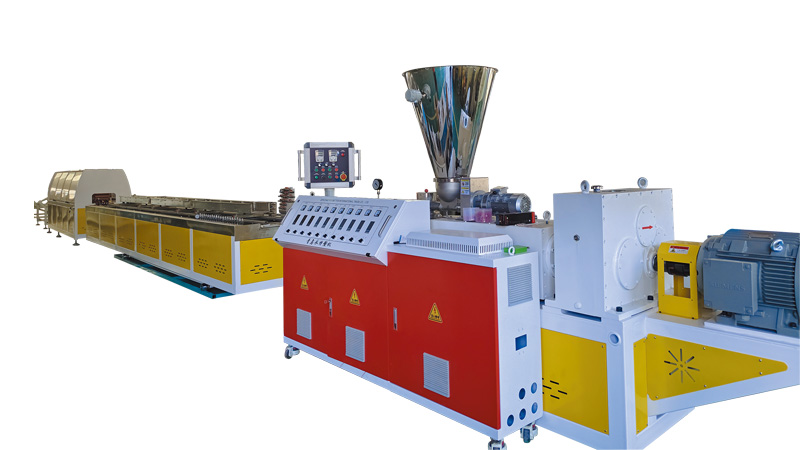

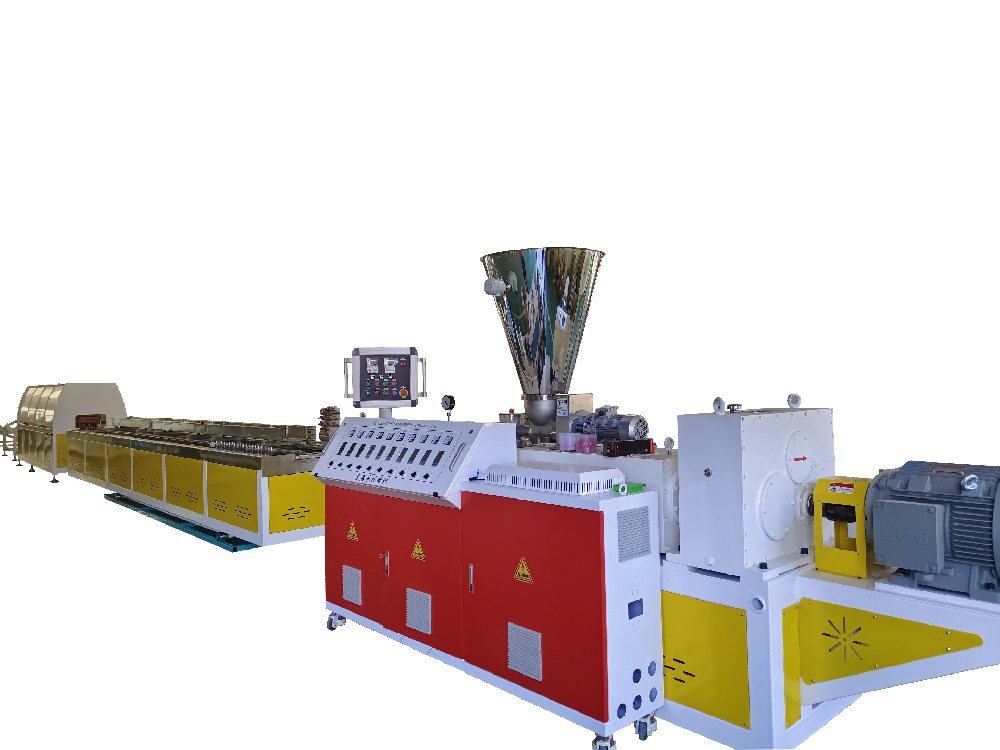

Yongte PVC profile machine is generally composed of material feeder,extrusion system, mold and calibrators, cooling table, pull off device, cuttingdevice, and control system, The PVC profiles are widely used in the constructionand home improvement industry, Such as PVC doors, PVC windows, PVC ceilin

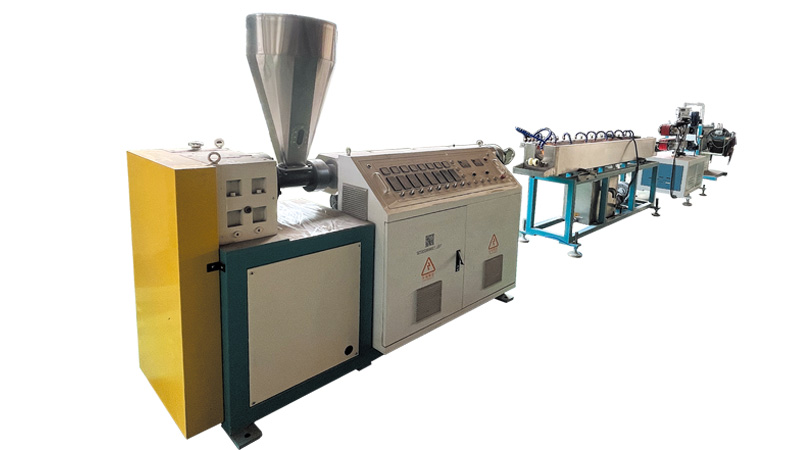

This machine is used for processing the rubber powder into rubber hose, therubber hose diameter generally is 16mm, 20mm, 25mm, 32mm. The rubber hosesare widely used as agricultural irrigation pipes and aquaculture aeration pipes.The rubber hose extrusion line is composed with material feeder, single

.

Yongte PVC profile extrusion machine is a special equipment for the production of PVC profiles. In short,PVC profile extrusion machine transform PVC raw materials into profile products with specific shapes and sizes through a series of mechanical and thermal actions.It rotates through a screw in a h

.

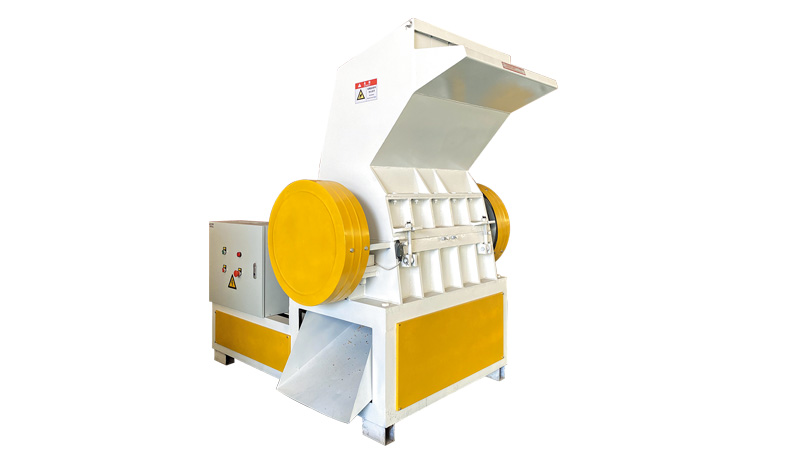

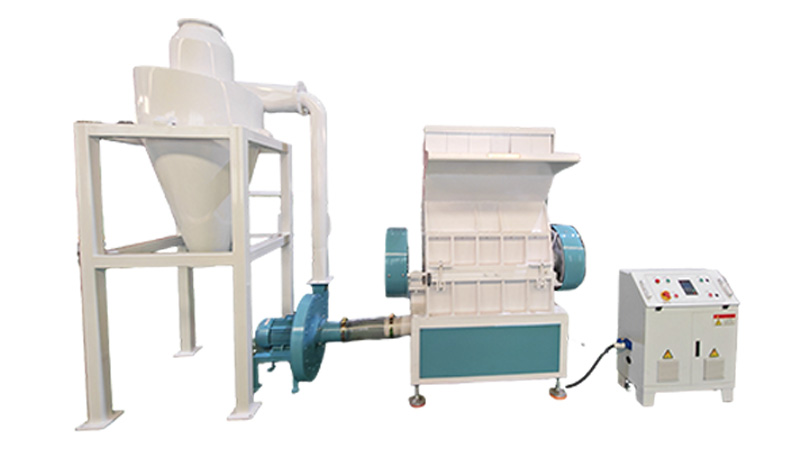

Main Technical Parameter：ModelSWP360SWP400SWP500SWP630Rotarydiameter360mm400mm500mm600mmRotatingblades3pcs5pcs12pcs12pcsFixedblades2pcs2pcs2pcs2pcsMotorpower15kw30kw37kw45kwCapacity200-300kg/h400-500kg/h400-1000kg/h700-1500kg/h

Plastic granulator is a device used to process waste plastic or plastic raw materialsinto plastic granules. it plays an important role in the plastic recyclingindustry andthe production of plastic products, providing key support for the recycling andprocessing of plastics.Its main components include

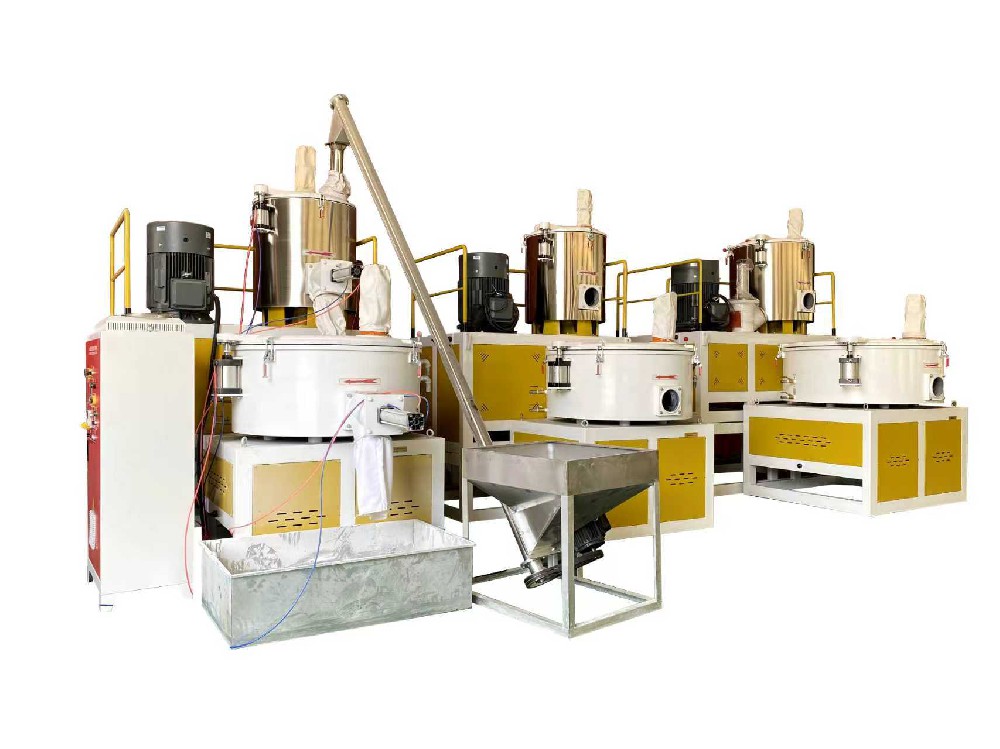

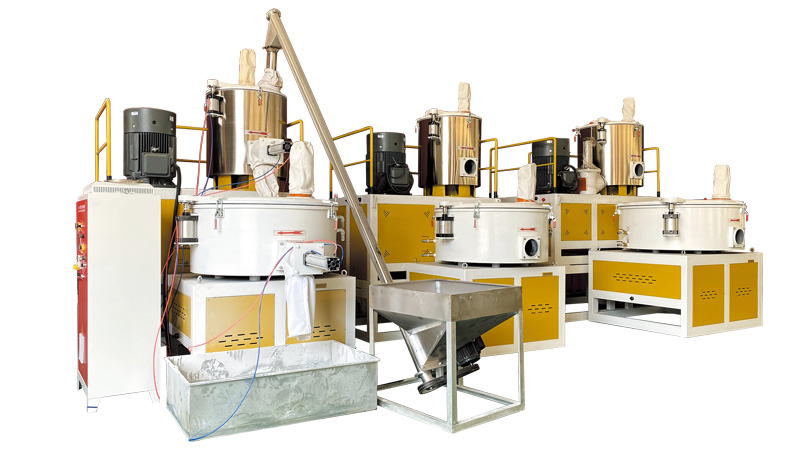

Main Technical Parameter：ModelSRL-200/500SRL-300/600SRL-200/500SRL-800/2000SRL-200/500Total Volume200L/500L300L/600L500L/1000L800L/2000L1000L/3000LValidVolume120L/300L180L/360L300L/600L480L/1200L750L/2000LHot mixer power30/42kw40/55kw75kw inverter control90kw Inverter control132 kw Inverter c

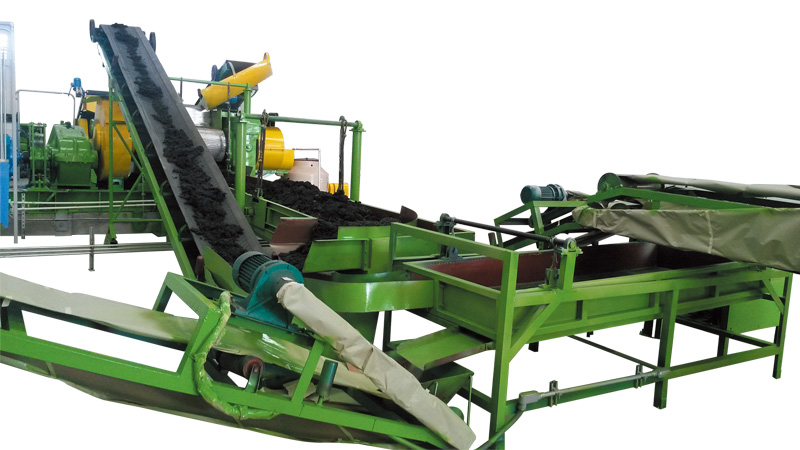

This machine is used for recycling the wasted rubber tyre into rubber powder,it includes the functions ofwire ring rulling, primary cutting, tyre shredding, rubberblocks crushing, and rubber powder grinding.

.

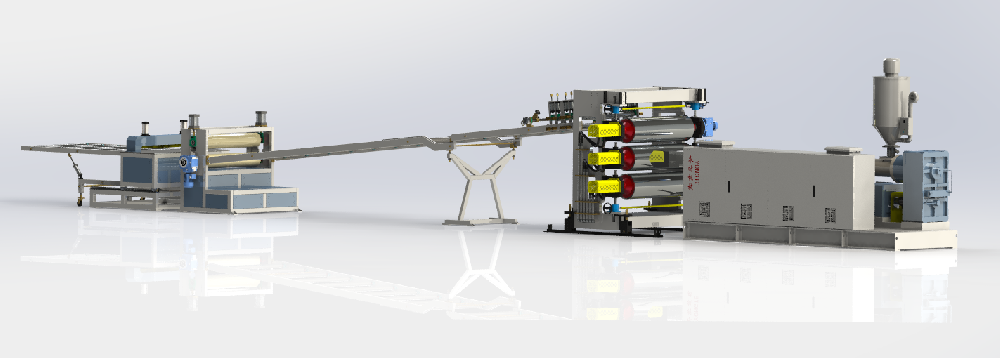

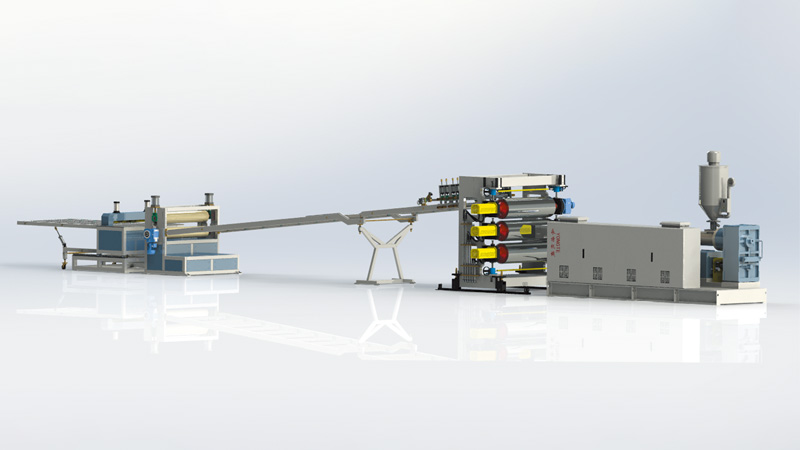

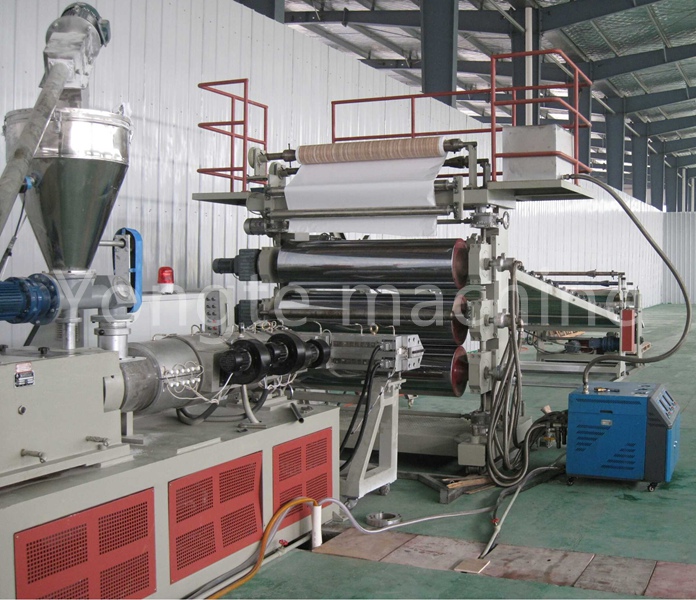

Plastic sheet production line is used for making PP PE ABS HIPS PMMA sheets/plates/boards with different width and thickness. it mainly composed of materialfeeder, extruder,T die, three-roll calender, cooling bracket, haul offmachine, cuttingmachine, coiler machine and electric control system.Plasti

.

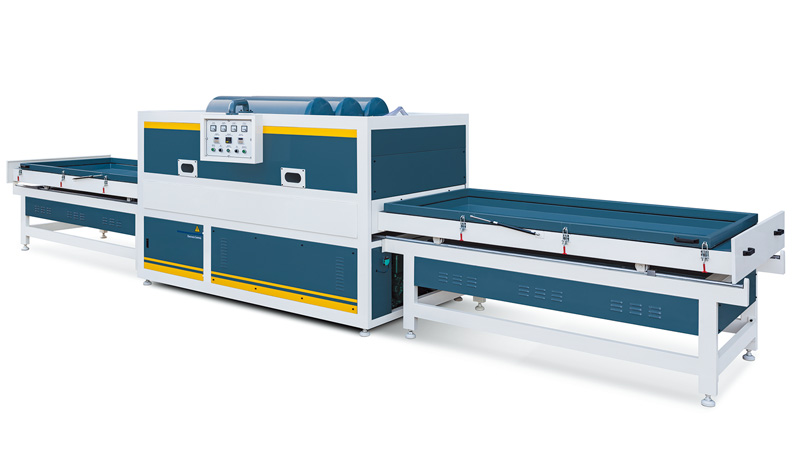

This machine is used for surface lamination of pVc board, MDF board, WPCfoam board, and WPC door board with modeling surface after CNC engraving.The lamination material generally is PVC film. This machine uses cold glue.

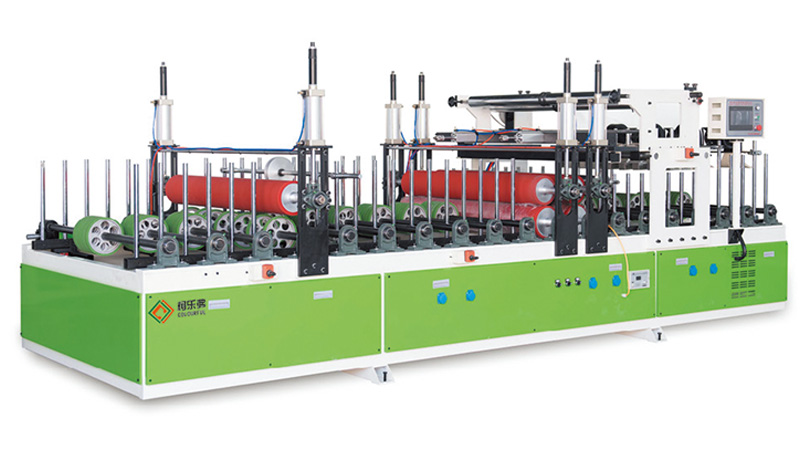

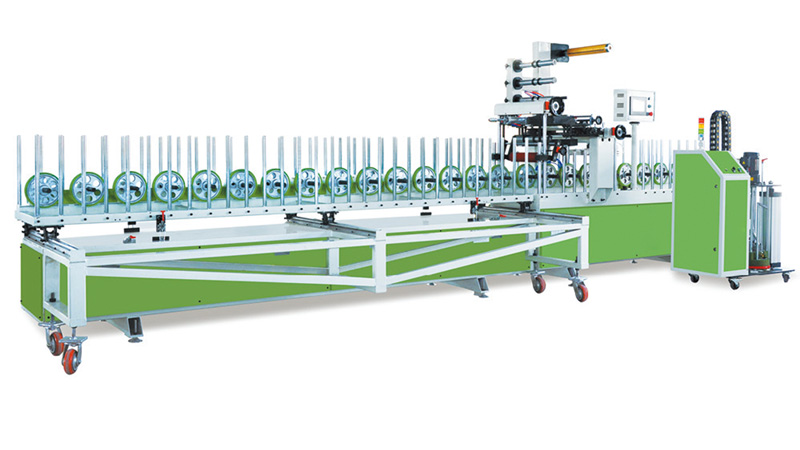

This machine is used for surface lamination of PVC windows and doors profile.aluminum alloy windows and door profiles, MDF/WPC profile, etc. The laminationmaterial can be PvC film, paper, wood veneer, CPL, and leather. This machine usesPUR hot melt adhesive.

This machine is used for surface lamination of window sill, PVC board, MDFboard, WPC foam board, WPC door board, Aluminum sheet and other decorationproducts with smooth surface. The lamination material can be PVC film, paper,wood veneer, CPL, and leather. This machine uses PUR hot melt adhesive.

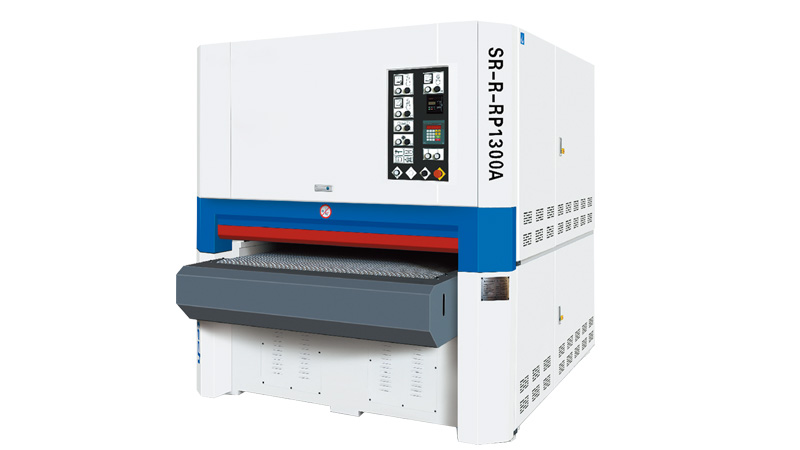

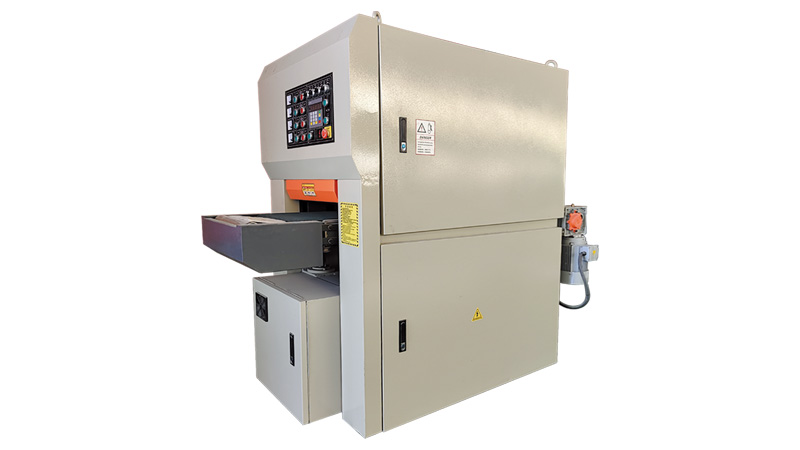

Double-side sanding machine is usedfor surface sanding of MDF/WPC/Woodboards and other materials. it can dosanding both front and back sides ofthe board at one time to remove surfacedefects, unevenness, burrs, etc., sothat the material surface can meetcertain flatness, smoothness androughness

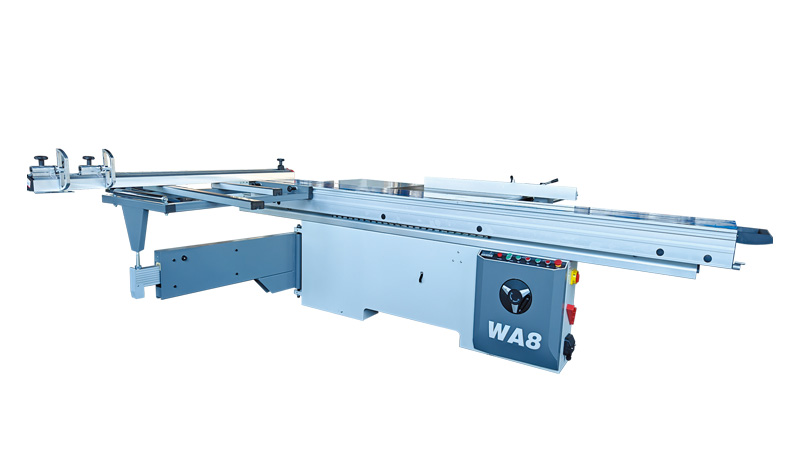

This machine is used for cutting the WPC products, it can work for lengthcutting, width cutting and angle cutting.

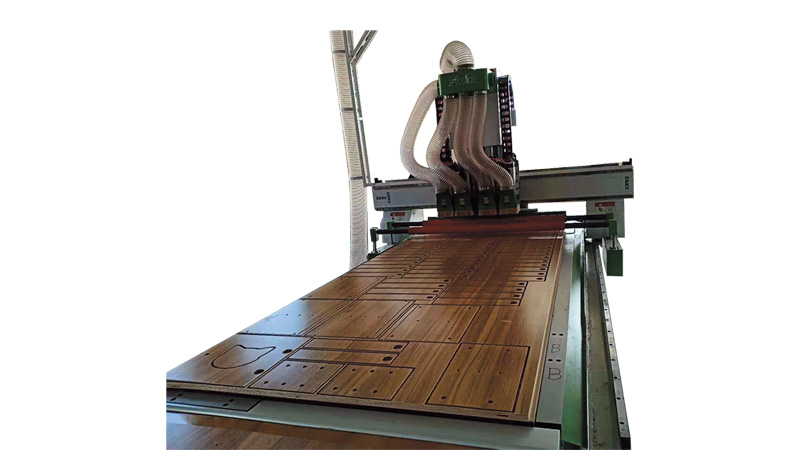

This machine has the processing functions of door panel CNC engraving andholes drilling for lock, hinge, lock core hole, dust-proof strip, fireproof strip, doorcloser, cat's eye,and glass frame.

This machine is used for 2D embossingdesign, it will be used after the extrusionline when the WPC products are cooled.

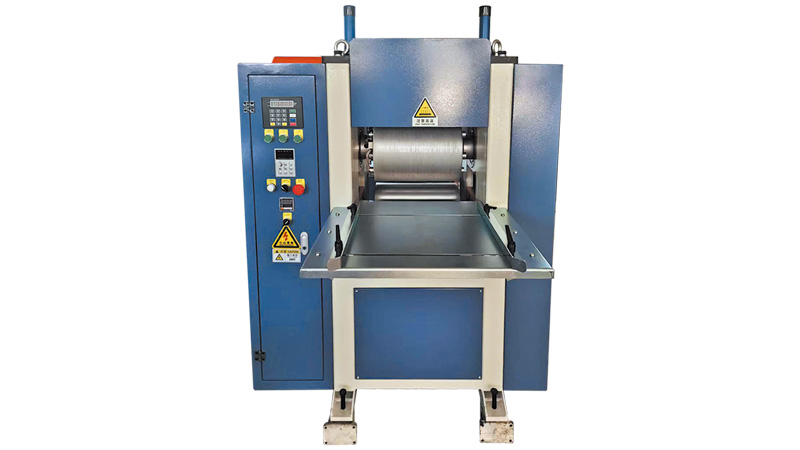

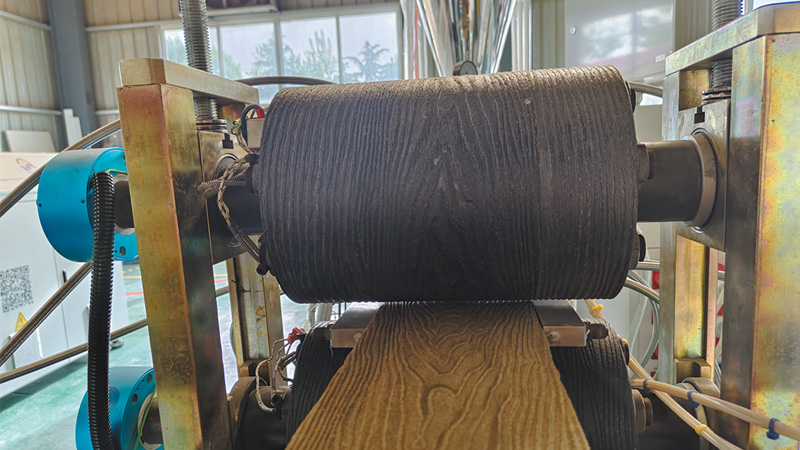

Embossing machine: it is used for making wooden pattern on the WPC productsby embossing rollers, it can be installed on the extrusion line to achieve 3D deepembossing, or used after the extrusion line to make light embossing in fast speed.Main Technical Parameter:Model0n-165On-295Off-295YT-1300Rolle

Sanding and brushing machine:sanding and brushing processing on WPCproducts can achieve rough wooden surfacebecause it take away the plastic surface,it also can be used after online embossingto achieve more real wooden feelingMain Technical Parameter：ModelSM-400SM-600SM-1000SM-1300Sanding width360m
